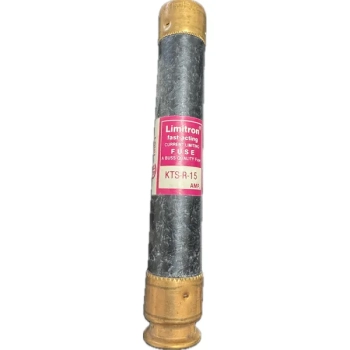

KTS-R-15 600V 15 Amp Fast RK1 Fuse

KTS-R-15 600V 15 Amp Time Delay Fuse

• Current limitation for non-inductive circuits provides Class RK1 current-limiting response to maximum ground fault and short-circuit conditions.
• Economical solutions for high-fault circuits.
• Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events.
• 200kA Interrupting rating complies with NEC® Section 110.9 for today's large capacity systems.
• Fast-acting fuse helps prevent equipment damage caused by short-circuit events. Incorporates Class R rejection feature.
• Can be inserted in non-rejection type fuse holders to physically and electrically replace fast-acting Class H, K1, K5, RK5, and other fast-acting fuses.
• Ideal for critical industrial or commercial applications that have specific current limitation requirements.
• • 5 x .81 inch
