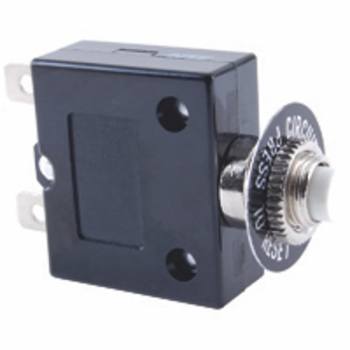

R58-15A 15A SPST Push Button Reset Thermal Circuit Breaker

R58-15A 15A SPST Push Button Reset Thermal Circuit Breaker

• .250” (6.35mm) Quick Connect Terminals
• Cannot be Manually Tripped
• Visual Trip Indicator
• Push Button to Reset Breaker
• Trip Times
  • Rated Load 100%: No Trip
  • Rated Load 145%: Trip in 1 Hour
  • Rated Load 200%: Trip in 10 to 45 Seconds
  • Rated Load 400%: Trip in 3.0 to 14.0 Seconds
  • Rated Load 600%: Trip in 1.4 to 7 Seconds
  • Rated Load 800%: Trip in 0.75 to 4.3 Seconds
  • Rated Load 1000%: Trip in 0.5 to 3.4 Seconds
