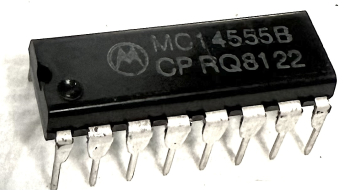

MC14555BCP Dual Binary 1 of 4 Decoder/Demultiplexer

The MC14555B is constructed with complementary MOS (CMOS) enhancement mode devices. Each Decoder/Demultiplexer has two select inputs (A and B), an active low Enable input (E), and four mutually exclusive outputs (Q0, Q1, Q2, Q3). The MC14555B has the selected output go to the “high” state, and the MC14556B has the selected output go to the “low” state. Expanded decoding such as binary−to−hexadecimal (1−of−16), etc., can be achieved by using other MC14555B or MC14556B devices.

• Supply Voltage = 3.0Vdc to 18Vdc

• Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load over the Rated Temperature Range

•Diode Protection on All Inputs•Active High or Active Low Outputs
