MC1438R Operational Amp Power Booster

The MC1438 is designed as a high current gain amplifier (70db), with unity voltage gain that can deliver load currents up to +/-300 mAdc.  This device is ideally suited to follow an operational amplifier such as MC1556/MC1456 for driving low impedance loads an improving overall circuit performance.

• High Input Impedance - .04 Meg-Ohm typ
• Large Power bandwidth - 1.5MHz typ
• Low Output Impedance - 10 ohms typ
• Adjustable Current Limit - +/-5.0 mAdc to +/- 300mAdc
• Excellent Power Supply Trjection - 1.0 mV/V typ
• Current Gain - 3000 typ

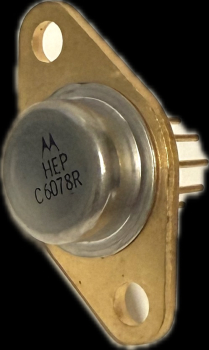

• HEP C6078R
