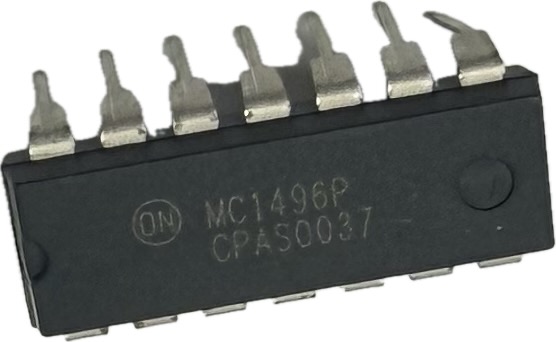

MC1496P Balanced Modulator-Demodulator

MC1496P produce an output voltage proportional to the product of an input (signal) voltage and a switching (carrier) signal Typical applications include suppressed carrier modulation amplitude modulation synchronous detection FM or PM detection broadband frequency doubling and chopping

• Box SC1

• Excellent carrier suppression

  65 dB typical at 05 MHz

  50 dB typical at 10 MHz

  Y Adjustable gain and signal handling

  Y Fully balanced inputs and outputs

  Y Low offset and drift

  Y Wide frequency response up to 100 MHz
