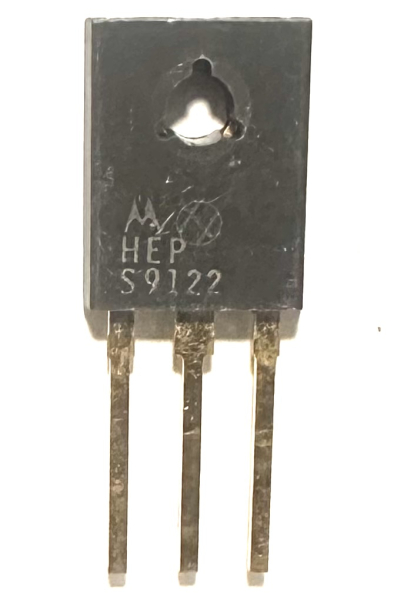

MJE1090 60V PNP SI Audio Amp 70W 5 Amp HEPS9122

MJE1090 HEPS9122 PNP SI Audio Amp

• Type Designator: MJE1090 HEPS9122
     Material of Transistor: Si
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 70 W
     Maximum Collector-Base Voltage |Vcb|: 60 V
     Maximum Collector-Emitter Voltage |Vce|: 60 V
     Maximum Emitter-Base Voltage |Veb|: 5 V
     Maximum Collector Current |Ic max|: 5 A
     Max. Operating Junction Temperature (Tj): 150 °C
     Transition Frequency (ft): 4 MHz
     Forward Current Transfer Ratio (hFE), MIN: 750
• TO-218 Case
