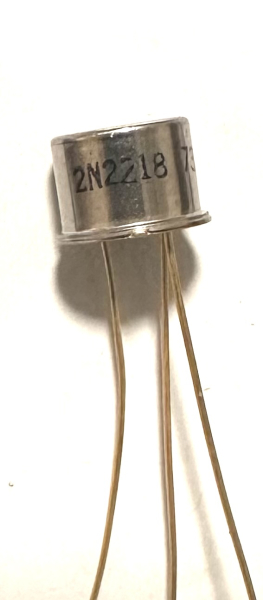

2N2218 Silicon NPN transistor 0.8W 60V

2N2218 NPN Transistor

• Type Designator: 2N2218
     Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.8 W
     Maximum Collector-Base Voltage |Vcb|: 60 V
     Maximum Collector-Emitter Voltage |Vce|: 30 V
     Maximum Emitter-Base Voltage |Veb|: 6 V
     Maximum Collector Current |Ic max|: 0.8 A
     Max. Operating Junction Temperature (Tj): 200 °C
     Transition Frequency (ft): 250 MHz
     Collector Capacitance (Cc): 8 pF
     Forward Current Transfer Ratio (hFE), MIN: 40

• Case TO39
