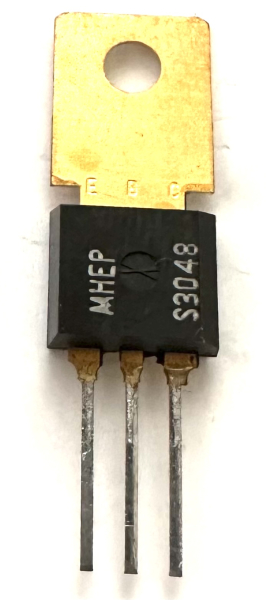

2N6558 HEPS3048 300V .5A PNP SI Power Audio AMP

2N6558 HEPS3048 300V .5A PNP Power Audio AMP

• Type Designator: 2N6558
     Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 2 W
     Maximum Collector-Base Voltage |Vcb|: 300 V
     Maximum Collector-Emitter Voltage |Vce|: 300 V
     Maximum Emitter-Base Voltage |Veb|: 6 V
     Maximum Collector Current |Ic max|: 0.5 A
     Max. Operating Junction Temperature (Tj): 150 °C
     Transition Frequency (ft): 45 MHz
     Forward Current Transfer Ratio (hFE), MIN: 40
