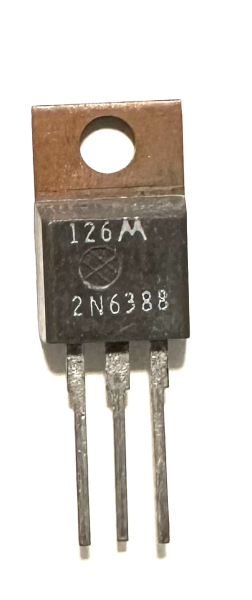

2N6388 NPN Power Transistor 10 Amp 80V 40W

2N6388 NPN Silicon Power Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 40 W
     Maximum Collector-Base Voltage |Vcb|: 80 V
     Maximum Collector-Emitter Voltage |Vce|: 80 V
     Maximum Emitter-Base Voltage |Veb|: 5 V
     Maximum Collector Current |Ic max|: 10 A
     Max. Operating Junction Temperature (Tj): 150 °C
     Transition Frequency (ft): 20 MHz
     Collector Capacitance (Cc): 200 pF
     Forward Current Transfer Ratio (hFE), MIN: 1000

• Case TO220
