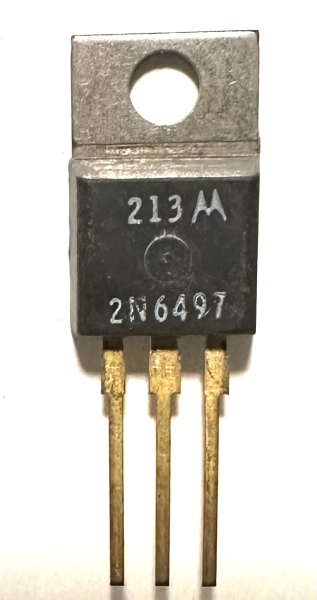

2N6497 NPN Power Transistor 5 Amp 350V 80W

2N6497 NPN Silicon Power Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 80 W
     Maximum Collector-Base Voltage |Vcb|: 350 V
     Maximum Collector-Emitter Voltage |Vce|: 250 V
     Maximum Emitter-Base Voltage |Veb|: 6 V
     Maximum Collector Current |Ic max|: 5 A
     Max. Operating Junction Temperature (Tj): 175 °C
     Transition Frequency (ft): 5 MHz
     Collector Capacitance (Cc): 150 pF
     Forward Current Transfer Ratio (hFE), MIN: 10
• Case TO220AB
