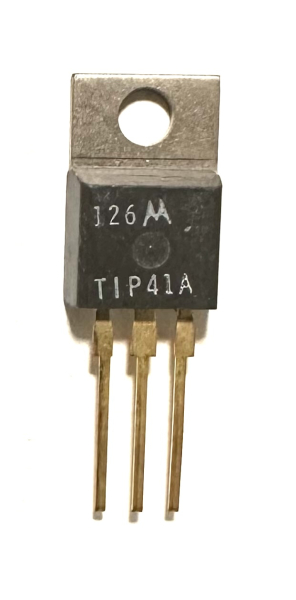

2N6122 TIP41A NPN Power Transistor 6 Amp 100V 65W

2N6122 TIP41A NPN Silicon Power Transistor

• Type Designator: TIP41A
     Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 65 W
     Maximum Collector-Base Voltage |Vcb|: 100 V
     Maximum Collector-Emitter Voltage |Vce|: 60 V
     Maximum Emitter-Base Voltage |Veb|: 5 V
     Maximum Collector Current |Ic max|: 6 A
     Max. Operating Junction Temperature (Tj): 150 °C
     Transition Frequency (ft): 3 MHz
     Forward Current Transfer Ratio (hFE), MIN: 20

• Case TO220
