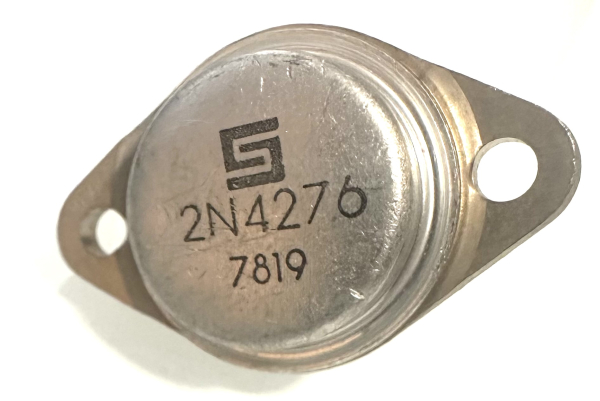

2N4276 PNP 30V 60A Germanium TO3 Mount Transistor 170W

2N4276 PNP 30V Germanium Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 170 W
     Maximum Collector-Base Voltage |Vcb|: 30 V
     Maximum Collector-Emitter Voltage |Vce|: 20 V
     Maximum Emitter-Base Voltage |Veb|: 20 V
     Maximum Collector Current |Ic max|: 60 A
     Max. Operating Junction Temperature (Tj): 110 °C
     Transition Frequency (ft): 0.12 MHz
     Forward Current Transfer Ratio (hFE), MIN: 60
  TO3 case
