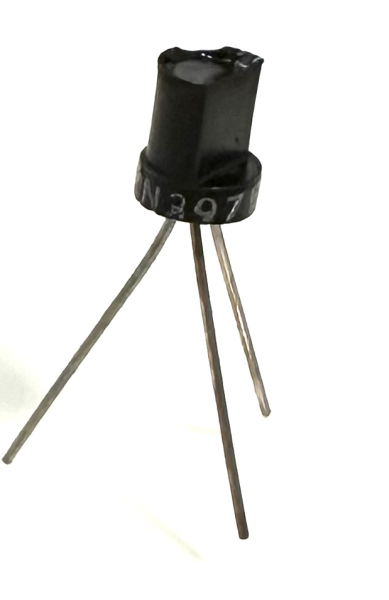

2N3975 NPN Small Amplifier Transistor .36W 60V

2N3975 NPN Silicon Power Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.36 W
     Maximum Collector-Base Voltage |Vcb|: 60 V
     Maximum Collector-Emitter Voltage |Vce|: 30 V
     Maximum Collector Current |Ic max|: 0.4 A
     Max. Operating Junction Temperature (Tj): 150 °C
     Transition Frequency (ft): 200 MHz
     Collector Capacitance (Cc): 7 pF
     Forward Current Transfer Ratio (hFE), MIN: 35
