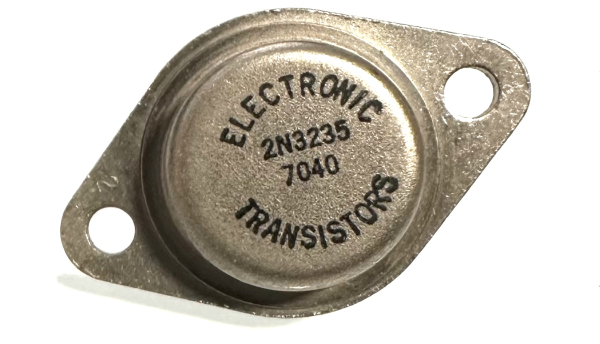

2N3235 PNP 55V 15A Germanium TO3 Mount Transistor 117W

2N3235 PNP 50V Germanium Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 117 W
     Maximum Collector-Base Voltage |Vcb|: 55 V
     Maximum Collector-Emitter Voltage |Vce|: 55 V
     Maximum Emitter-Base Voltage |Veb|: 7 V
     Maximum Collector Current |Ic max|: 15 A
     Max. Operating Junction Temperature (Tj): 200 °C
     Transition Frequency (ft): 1 MHz
     Forward Current Transfer Ratio (hFE), MIN: 20TO3 case
