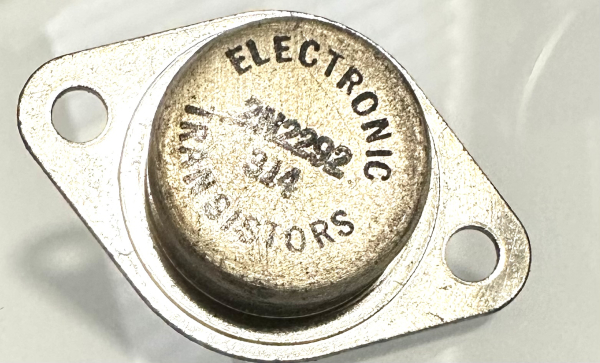

2N2292 PNP 80V 10A Germanium TO3 Mount Transistor 70W

2N2292 PNP 50V Germanium Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 70 W
     Maximum Collector-Base Voltage |Vcb|: 80 V
     Maximum Collector-Emitter Voltage |Vce|: 50 V
     Maximum Emitter-Base Voltage |Veb|: 1 V
     Maximum Collector Current |Ic max|: 10 A
     Max. Operating Junction Temperature (Tj): 110 °C
     Transition Frequency (ft): 0.45 MHz
     Forward Current Transfer Ratio (hFE), MIN: 50

• TO3 case
