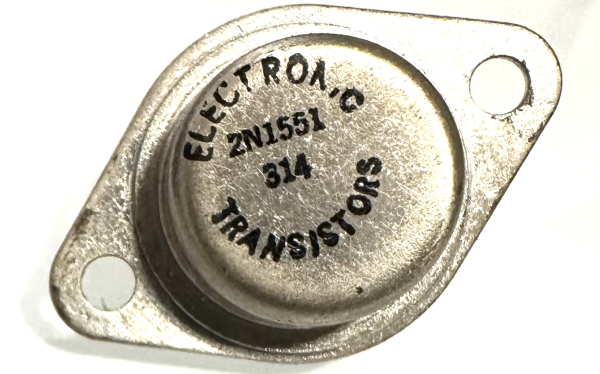

2N1551 PNP 80V 20A Germanium TO3 Mount Transistor 106W

2N1551 PNP 80V 106 Watt Germanium Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 106 W
     Maximum Collector-Base Voltage |Vcb|: 80 V
     Maximum Collector-Emitter Voltage |Vce|: 40 V
     Maximum Emitter-Base Voltage |Veb|: 40 V
     Maximum Collector Current |Ic max|: 20 A
     Max. Operating Junction Temperature (Tj): 110 °C
     Transition Frequency (ft): 0.1 MHz
     Forward Current Transfer Ratio (hFE), MIN: 10

• TO3 case
