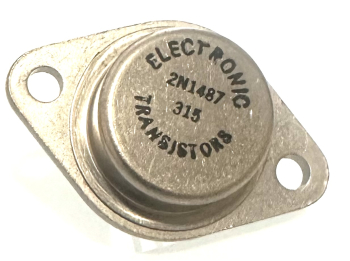

2N1487 NPN Power Transistor 60V 75W 6A

2N1487 NPN Silicon Power Transistor

•  Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 75 W
     Maximum Collector-Base Voltage |Vcb|: 60 V
     Maximum Collector-Emitter Voltage |Vce|: 60 V
     Maximum Emitter-Base Voltage |Veb|: 40 V
     Maximum Collector Current |Ic max|: 6 A
     Max. Operating Junction Temperature (Tj): 200 °C
     Transition Frequency (ft): 1 MHz
     Forward Current Transfer Ratio (hFE), MIN: 15

• TO3 case
