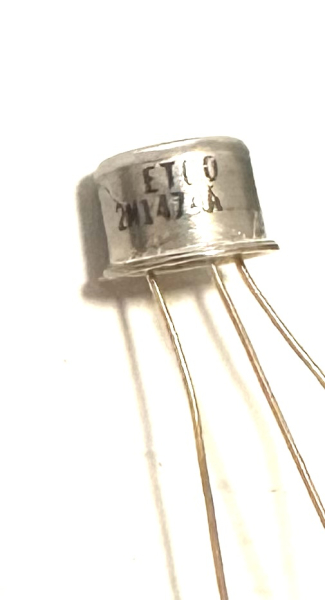

2N1474A .1A PNP Silicon Amp 60 Volt .25 Watt

2N1474A PNP Silicon

• 2N1474A
     Material of Transistor: Si
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 0.25 W
     Maximum Collector-Base Voltage |Vcb|: 60 V
     Maximum Collector-Emitter Voltage |Vce|: 60 V
     Maximum Emitter-Base Voltage |Veb|: 60 V
     Maximum Collector Current |Ic max|: 0.1 A
     Max. Operating Junction Temperature (Tj): 175 °C
     Transition Frequency (ft): 2 MHz
     Collector Capacitance (Cc): 12 pF
     Forward Current Transfer Ratio (hFE), MIN: 18

• TO5 case
