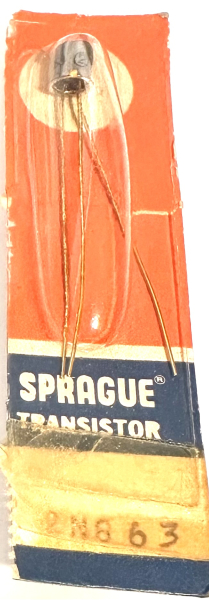

2N863 .05A PNP .15W Silicon Amp

2N863 PNP Silicon

• Material of Transistor: Si
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 0.15 W
     Maximum Collector-Base Voltage |Vcb|: 15 V
     Maximum Collector-Emitter Voltage |Vce|: 15 V
     Maximum Emitter-Base Voltage |Veb|: 10 V
     Maximum Collector Current |Ic max|: 0.05 A
     Max. Operating Junction Temperature (Tj): 140 °C
     Transition Frequency (ft): 10 MHz
     Collector Capacitance (Cc): 10 pF
     Forward Current Transfer Ratio (hFE), MIN: 25

• TO18 case
