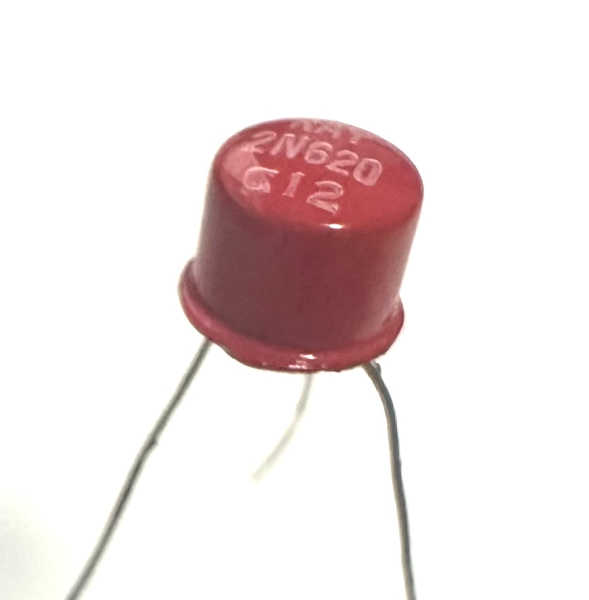

2N620 Silicon NPN transistor

2N620 NPN Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.25 W
     Maximum Collector-Base Voltage |Vcb|: 50 V
     Maximum Collector-Emitter Voltage |Vce|: 35 V
     Maximum Collector Current |Ic max|: 0.05 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 0.3 MHz
     Forward Current Transfer Ratio (hFE), MIN: 25
