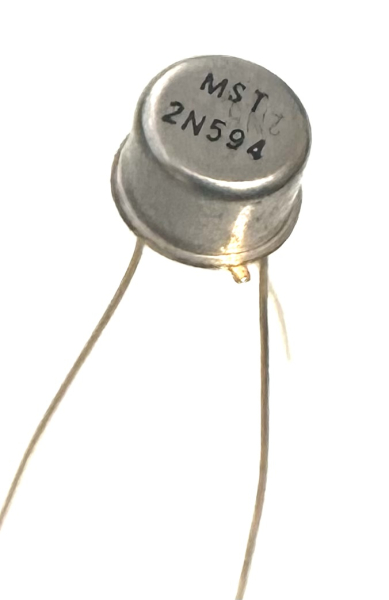

2N594 Germanium NPN epitaxial planar transistor 20V .15W

2N594 NPN Transistor

• Material of Transistor: Ge
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.15 W
     Maximum Collector-Base Voltage |Vcb|: 20 V
     Maximum Collector-Emitter Voltage |Vce|: 20 V
     Maximum Emitter-Base Voltage |Veb|: 20 V
     Maximum Collector Current |Ic max|: 0.3 A
     Max. Operating Junction Temperature (Tj): 85 °C
     Transition Frequency (ft): 1 MHz
     Forward Current Transfer Ratio (hFE), MIN: 20

• TO5 case
