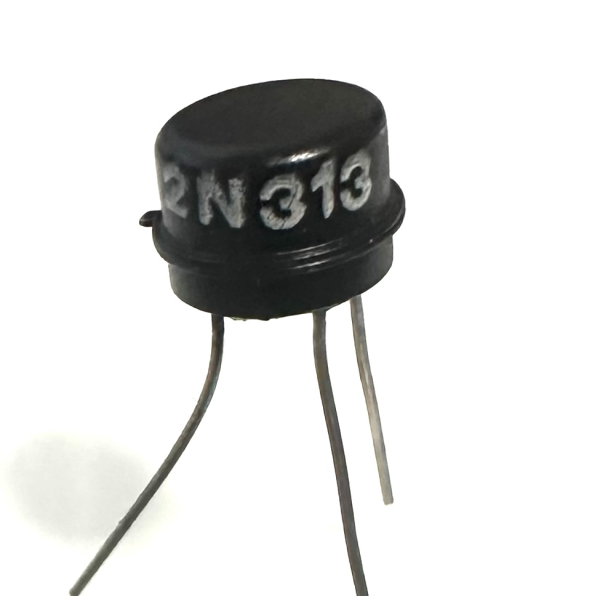

2N313 NPN High Gain Oscillilator Mixer

2N313 NPN Transistor

   Material of Transistor: Ge
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.065 W
   Maximum Collector-Base Voltage |Vcb|: 15 V
   Maximum Collector-Emitter Voltage |Vce|: 15 V
   Maximum Collector Current |Ic max|: 0.02 A
   Max. Operating Junction Temperature (Tj): 85 °C
   Transition Frequency (ft): 2 MHz
   Forward Current Transfer Ratio (hFE), MIN: 25
