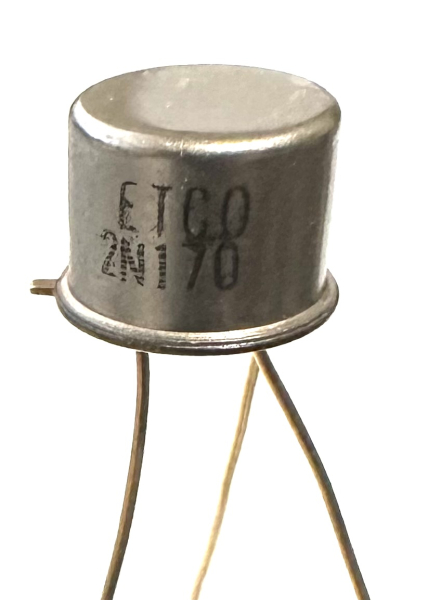

2N170 Germanium NPN epitaxial planar transistor 15V .065W

2N170 NPN Transistor

• Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.065 W
     Maximum Collector-Base Voltage |Vcb|: 15 V
     Maximum Collector-Emitter Voltage |Vce|: 15 V
     Maximum Collector Current |Ic max|: 0.02 A
     Max. Operating Junction Temperature (Tj): 85 °C
     Transition Frequency (ft): 3 MHz
     Collector Capacitance (Cc): 5 pF
     Forward Current Transfer Ratio (hFE), MIN: 40

• TO5 case
