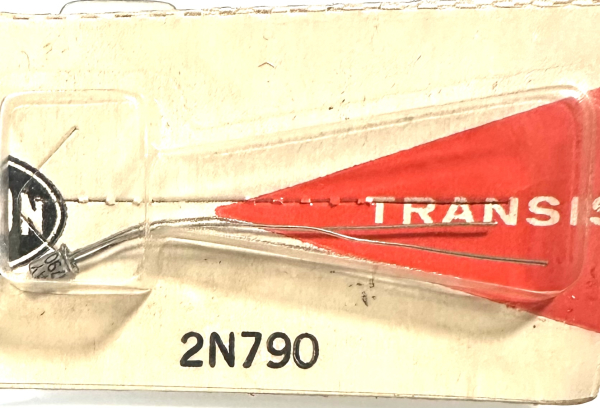

2N790 Silicon NPN epitaxial planar transistor 45V .15W

2N790 NPN Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.15 W
     Maximum Collector-Base Voltage |Vcb|: 45 V
     Maximum Collector-Emitter Voltage |Vce|: 30 V
     Maximum Emitter-Base Voltage |Veb|: 3 V
     Maximum Collector Current |Ic max|: 0.025 A
     Max. Operating Junction Temperature (Tj): 175 °C
     Transition Frequency (ft): 2 MHz
     Forward Current Transfer Ratio (hFE), MIN: 18

• Case U8
