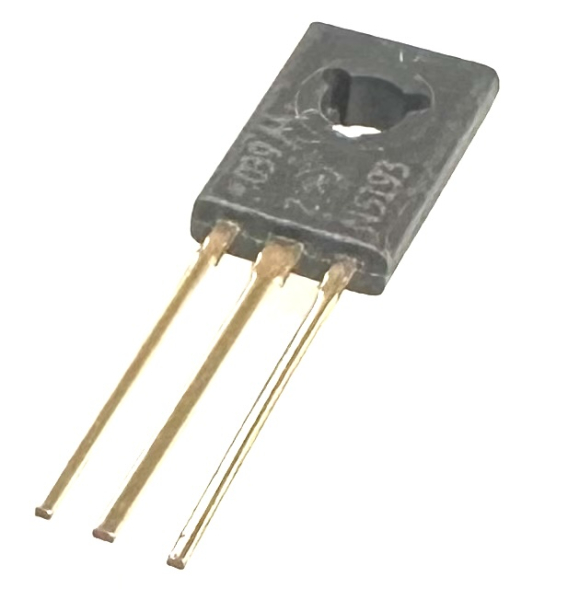

2N5193 40V PNP Silicon General Purpose AMP

2N5193 PNP Silicon General Purpose AMP

• Material of Transistor: Si
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 40 W
     Maximum Collector-Base Voltage |Vcb|: 40 V
     Maximum Collector-Emitter Voltage |Vce|: 40 V
     Maximum Emitter-Base Voltage |Veb|: 4 V
     Maximum Collector Current |Ic max|: 4 A
     Max. Operating Junction Temperature (Tj): 150 °C
     Transition Frequency (ft): 2 MHz
     Forward Current Transfer Ratio (hFE), MIN: 25
• TO126 case
