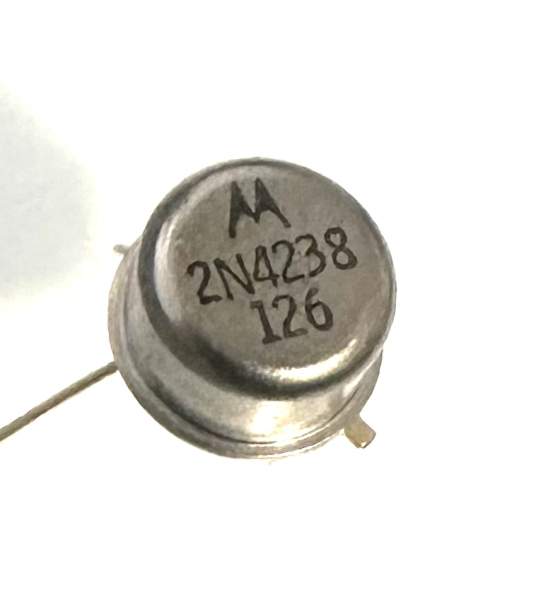

2N4238 Silicon NPN transistor 5W 80V

2N4238 NPN Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 5 W
     Maximum Collector-Base Voltage |Vcb|: 80 V
     Maximum Collector-Emitter Voltage |Vce|: 60 V
     Maximum Emitter-Base Voltage |Veb|: 6 V
     Maximum Collector Current |Ic max|: 1 A
     Max. Operating Junction Temperature (Tj): 200 °C
     Transition Frequency (ft): 80 MHz
     Forward Current Transfer Ratio (hFE), MIN: 15

• TO5 Case
