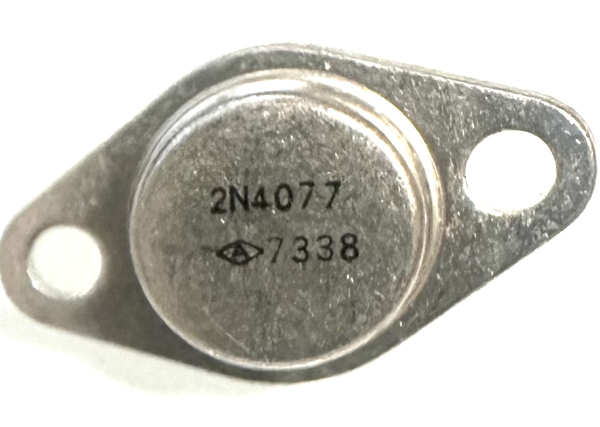

2N4077 NPN Power Transistor 8W 32V

2N4077 NPN Germanium Power Transistor

•   Material of Transistor: Ge
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 8 W
     Maximum Collector-Base Voltage |Vcb|: 32 V
     Maximum Collector-Emitter Voltage |Vce|: 20 V
     Maximum Emitter-Base Voltage |Veb|: 10 V
     Maximum Collector Current |Ic max|: 1 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 1 MHz
     Collector Capacitance (Cc): 150 pF
     Forward Current Transfer Ratio (hFE), MIN: 50
• TO66 case
