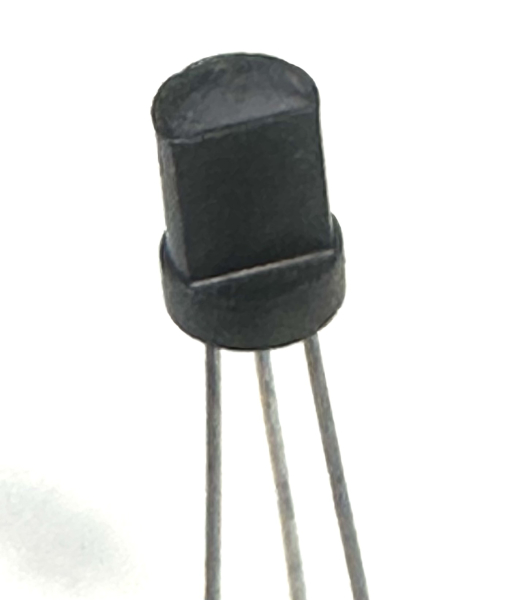

2N3860 Silicon NPN transistor

2N3860 NPN Transistor

• Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.2 W
     Maximum Collector-Base Voltage |Vcb|: 30 V
     Maximum Collector-Emitter Voltage |Vce|: 30 V
     Maximum Collector Current |Ic max|: 0.1 A
     Max. Operating Junction Temperature (Tj): 125 °C
     Transition Frequency (ft): 90 MHz
     Collector Capacitance (Cc): 4 pF
     Forward Current Transfer Ratio (hFE), MIN: 150
