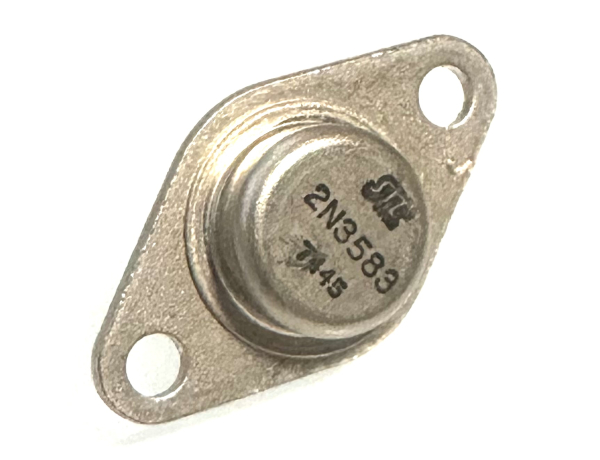

2N3583 NPN 250V 35W Power Transistor

2N3583 NPN Transistor

   Polarity: NPN

   Material of Transistor: Si
   Maximum Collector Power Dissipation (Pc): 35 W
   Maximum Collector-Base Voltage |Vcb|: 250 V
   Maximum Collector-Emitter Voltage |Vce|: 175 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 1 A
   Max. Operating Junction Temperature (Tj): 200 °C
   Transition Frequency (ft): 10 MHz
   Forward Current Transfer Ratio (hFE), MIN: 40

TO66 case
