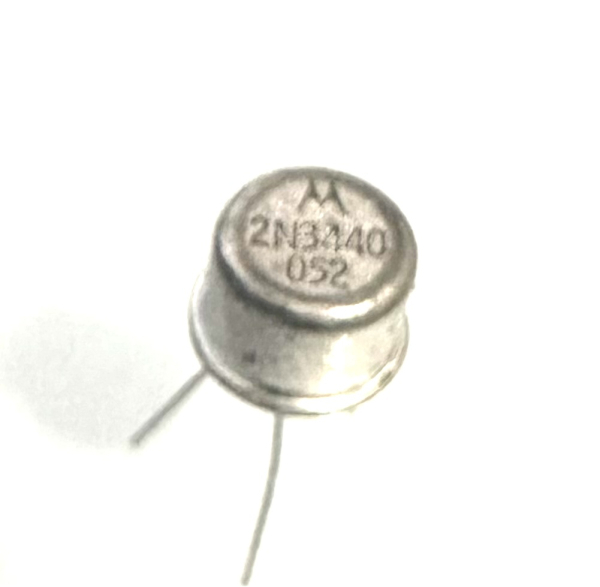

2N3440 NPN 300V 1W Power Switching Transistor

2N3440 NPN Transistor

   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 1 W
   Maximum Collector-Base Voltage |Vcb|: 300 V
   Maximum Collector-Emitter Voltage |Vce|: 250 V
   Maximum Emitter-Base Voltage |Veb|: 7 V
   Maximum Collector Current |Ic max|: 1 A
   Max. Operating Junction Temperature (Tj): 200 °C
   Transition Frequency (ft): 15 MHz
   Collector Capacitance (Cc): 10 pF
   Forward Current Transfer Ratio (hFE), MIN: 40
