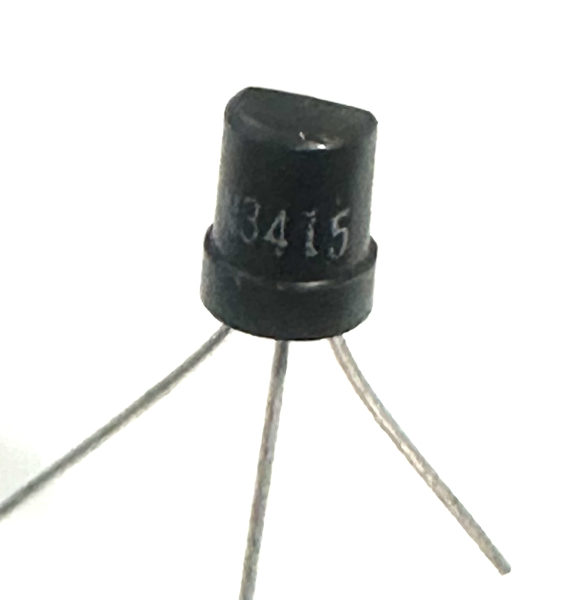

2N3415 NPN Small Amplifier Transistor .36W 25V

2N3415 NPN Silicon Power Transistor

Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.36 W
   Maximum Collector-Base Voltage |Vcb|: 25 V
   Maximum Collector-Emitter Voltage |Vce|: 25 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.5 A
   Max. Operating Junction Temperature (Tj): 175 °C
   Forward Current Transfer Ratio (hFE), MIN: 180
