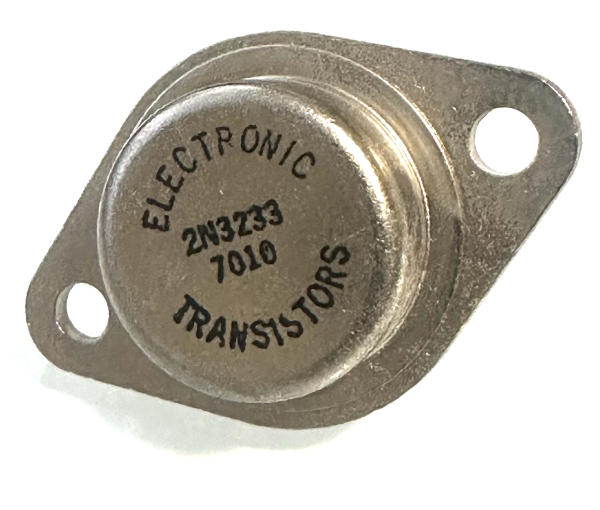

2N3233 NPN Power Transistor 110V 117W 7.5A

2N3233 NPN Silicon Power Transistor

•  Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 117 W
     Maximum Collector-Base Voltage |Vcb|: 110 V
     Maximum Collector-Emitter Voltage |Vce|: 110 V
     Maximum Emitter-Base Voltage |Veb|: 7 V
     Maximum Collector Current |Ic max|: 7.5 A
     Max. Operating Junction Temperature (Tj): 200 °C
     Transition Frequency (ft): 1 MHz
     Forward Current Transfer Ratio (hFE), MIN: 18

• TO3 case
