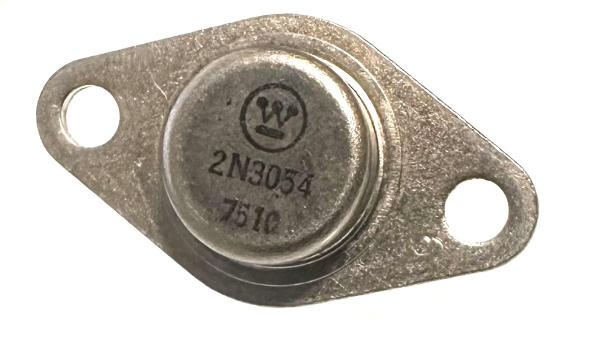

2N3054 NPN Power Transistor

2N3054 NPN Silicon Power Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 25 W
     Maximum Collector-Base Voltage |Vcb|: 60 V
     Maximum Collector-Emitter Voltage |Vce|: 50 V
     Maximum Emitter-Base Voltage |Veb|: 7 V
     Maximum Collector Current |Ic max|: 4 A
     Max. Operating Junction Temperature (Tj): 200 °C
     Transition Frequency (ft): 0.8 MHz
     Forward Current Transfer Ratio (hFE), MIN: 25

• TO66 case
