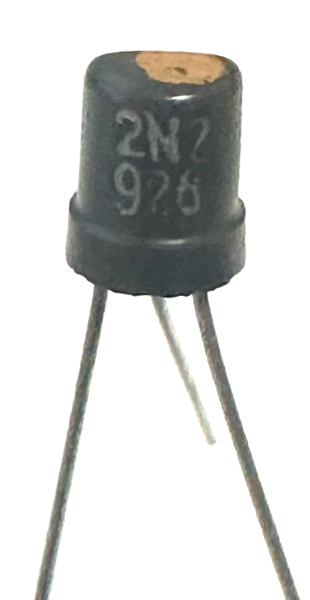

2N2926 SI-AF/RF NPN epitaxial planar transistor

2N2926 NPN Transistor

Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.2 W
   Maximum Collector-Base Voltage |Vcb|: 25 V
   Maximum Collector-Emitter Voltage |Vce|: 25 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 100 °C
   Transition Frequency (ft): 100 MHz
   Collector Capacitance (Cc): 10 pF
   Forward Current Transfer Ratio (hFE), MIN: 100

TO92 case
