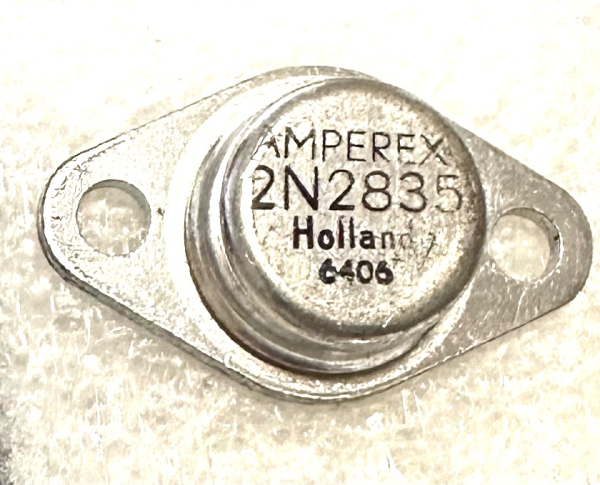

2N2835 32V 3A PNP Germanium 16W Transistor

2N2835 32V 3A PNP Power Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 16 W
     Maximum Collector-Base Voltage |Vcb|: 32 V
     Maximum Collector-Emitter Voltage |Vce|: 20 V
     Maximum Emitter-Base Voltage |Veb|: 10 V
     Maximum Collector Current |Ic max|: 3 A
     Max. Operating Junction Temperature (Tj): 90 °C
     Transition Frequency (ft): 0.6 MHz
     Collector Capacitance (Cc): 200 pF
     Forward Current Transfer Ratio (hFE), MIN: 30

• Case TO66
