2N976 15V 0.1A PNP Ge .1W Transistor

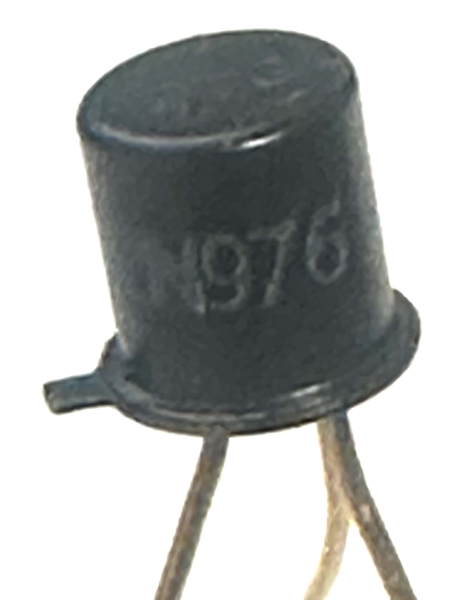

2N976 PNP Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 0.1 W
     Maximum Collector-Base Voltage |Vcb|: 15 V
     Maximum Collector-Emitter Voltage |Vce|: 10 V
     Maximum Collector Current |Ic max|: 0.1 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 250 MHz
     Collector Capacitance (Cc): 3 pF
     Forward Current Transfer Ratio (hFE), MIN: 30

• TO18 case
