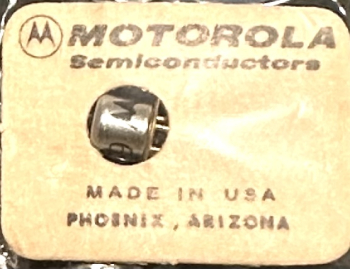

2N838 30V 0.1A PNP Ge .15W Transistor

2N838 Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 0.15 W
     Maximum Collector-Base Voltage |Vcb|: 30 V
     Maximum Collector-Emitter Voltage |Vce|: 15 V
     Maximum Emitter-Base Voltage |Veb|: 2 V
     Maximum Collector Current |Ic max|: 0.1 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 300 MHz
     Collector Capacitance (Cc): 9 pF
     Forward Current Transfer Ratio (hFE), MIN: 25
• TO18 case
