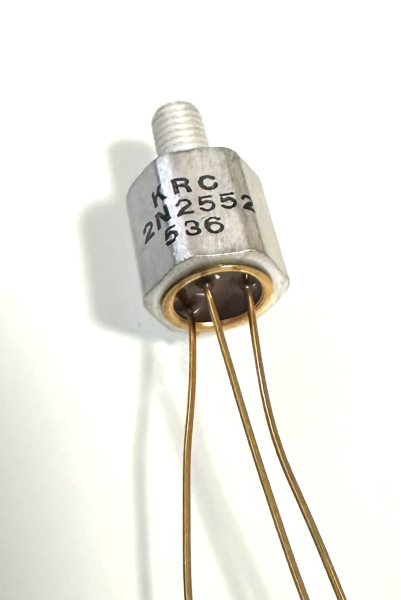

2N2552 PNP 40V 3A Germanium Stud Mount Transistor 20W

2N2552 PNP 40V Germanium Transistor

• MMaterial of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 20 W
     Maximum Collector-Base Voltage |Vcb|: 40 V
     Maximum Collector-Emitter Voltage |Vce|: 30 V
     Maximum Emitter-Base Voltage |Veb|: 20 V
     Maximum Collector Current |Ic max|: 3 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 0.22 MHz
     Forward Current Transfer Ratio (hFE), MIN: 20

• Case MT27
