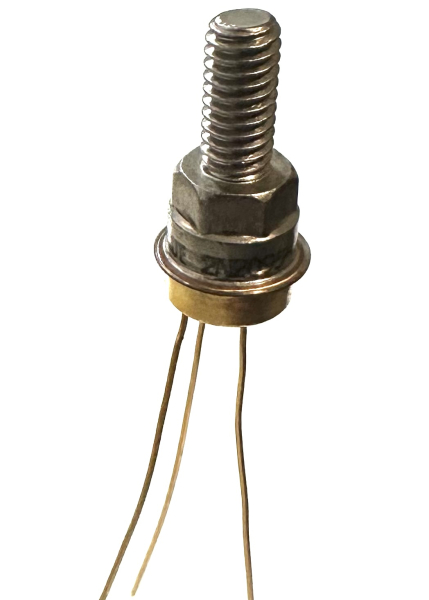

2N2095 30V 0.3A Stud mount PNP Ge 1 Watt Transistor

2N2095 PNP Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 1 W
     Maximum Collector-Base Voltage |Vcb|: 30 V
     Maximum Collector-Emitter Voltage |Vce|: 15 V
     Maximum Emitter-Base Voltage |Veb|: 5 V
     Maximum Collector Current |Ic max|: 0.3 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 500 MHz
     Collector Capacitance (Cc): 8 pF

• Case TO31
