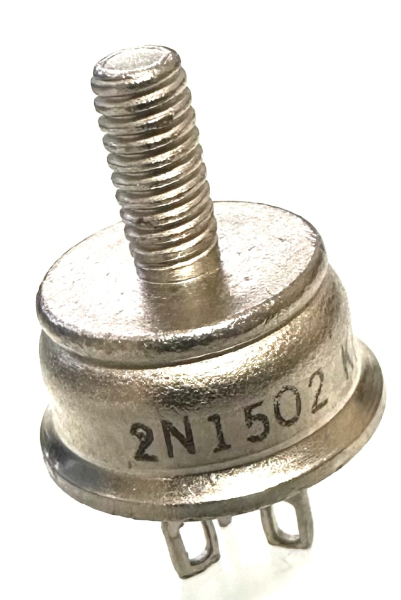

2N1502 PNP 40V 3.5A Germanium Stud Mount Transistor 34W

2N1502 PNP 40V Germanium Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 34 W
     Maximum Collector-Base Voltage |Vcb|: 40 V
     Maximum Collector-Emitter Voltage |Vce|: 40 V
     Maximum Emitter-Base Voltage |Veb|: 28 V
     Maximum Collector Current |Ic max|: 3.5 A
     Max. Operating Junction Temperature (Tj): 95 °C
     Transition Frequency (ft): 0.2 MHz
     Forward Current Transfer Ratio (hFE), MIN: 25
