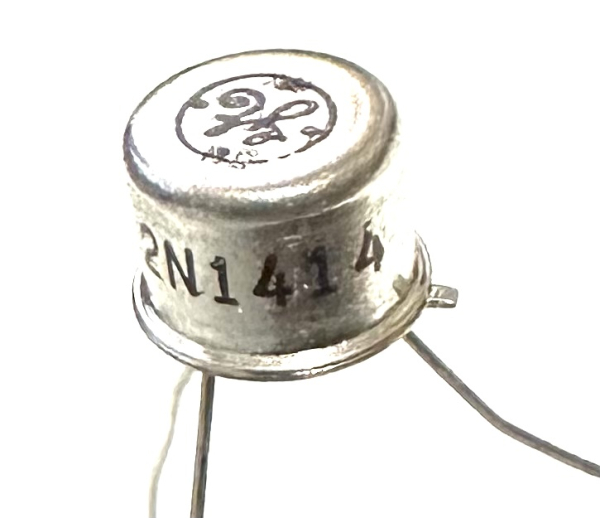

2N1414 35V 0.5A PNP Ge .2W Transistor

2N1414 PNP Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 0.2 W
     Maximum Collector-Base Voltage |Vcb|: 35 V
     Maximum Collector-Emitter Voltage |Vce|: 25 V
     Maximum Emitter-Base Voltage |Veb|: 10 V
     Maximum Collector Current |Ic max|: 0.5 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 0.8 MHz
     Collector Capacitance (Cc): 40 pF
     Forward Current Transfer Ratio (hFE), MIN: 35
