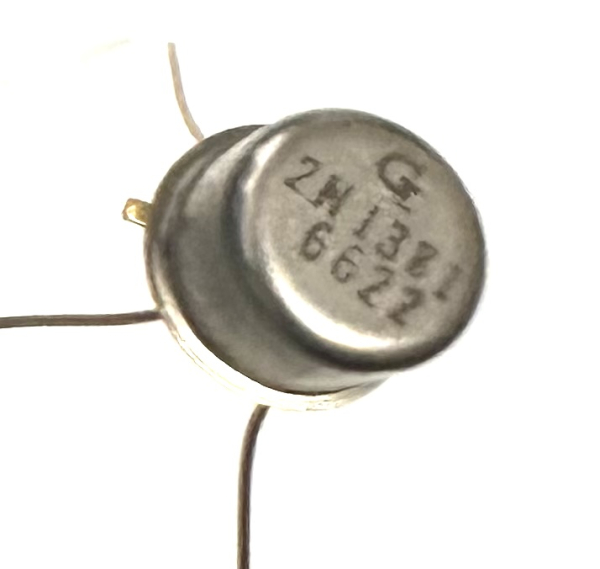

2N1381 25V 0.2A PNP Ge .25W Transistor

2N1381 PNP Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 0.25 W
     Maximum Collector-Base Voltage |Vcb|: 25 V
     Maximum Collector-Emitter Voltage |Vce|: 25 V
     Maximum Emitter-Base Voltage |Veb|: 15 V
     Maximum Collector Current |Ic max|: 0.2 A
     Max. Operating Junction Temperature (Tj): 85 °C
     Transition Frequency (ft): 0.4 MHz
     Forward Current Transfer Ratio (hFE), MIN: 25
     Forward Current Transfer Ratio (hFE), MIN: 45
