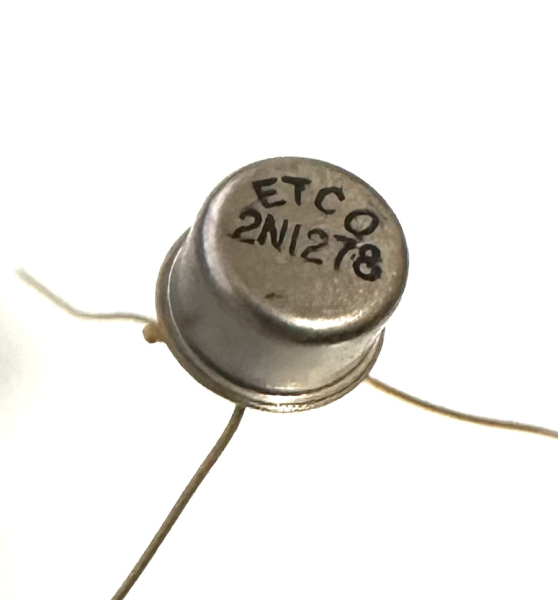

2N1278 SI NPN epitaxial planar transistor 45V .15W

2N1278 NPN Transistor

• Material of Transistor: Si
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.15 W
     Maximum Collector-Base Voltage |Vcb|: 45 V
     Maximum Collector-Emitter Voltage |Vce|: 30 V
     Maximum Collector Current |Ic max|: 0.025 A
     Max. Operating Junction Temperature (Tj): 175 °C
     Transition Frequency (ft): 15 MHz
     Collector Capacitance (Cc): 5 pF
     Forward Current Transfer Ratio (hFE), MIN: 35
