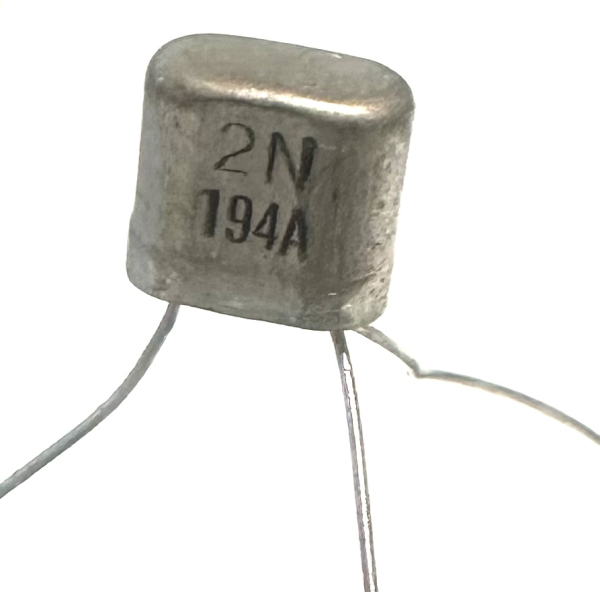

2N194A Germanium NPN Local Oscillator transistor

2N194A NPN Transistor

• Material of Transistor: Ge
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.05 W
     Maximum Collector-Base Voltage |Vcb|: 18 V
     Maximum Collector-Emitter Voltage |Vce|: 18 V
     Maximum Emitter-Base Voltage |Veb|: 5 V
     Maximum Collector Current |Ic max|: 0.05 A
     Max. Operating Junction Temperature (Tj): 75 °C
     Transition Frequency (ft): 1.2 MHz
     Collector Capacitance (Cc): 22 pF
     Forward Current Transfer Ratio (hFE), MIN: 10
