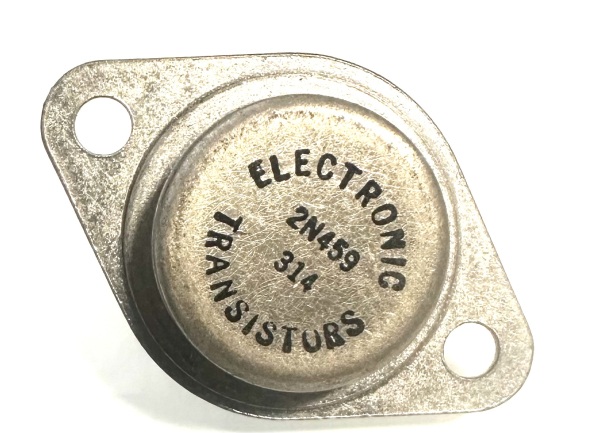

2N459 PNP 105V 5A Germanium Transistor 106W

2N459 PNP 40V Germanium Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 106 W
     Maximum Collector-Base Voltage |Vcb|: 105 V
     Maximum Collector-Emitter Voltage |Vce|: 60 V
     Maximum Emitter-Base Voltage |Veb|: 25 V
     Maximum Collector Current |Ic max|: 5 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 0.1 MHz
     Forward Current Transfer Ratio (hFE), MIN: 20
     Package: TO3
• Box 4
