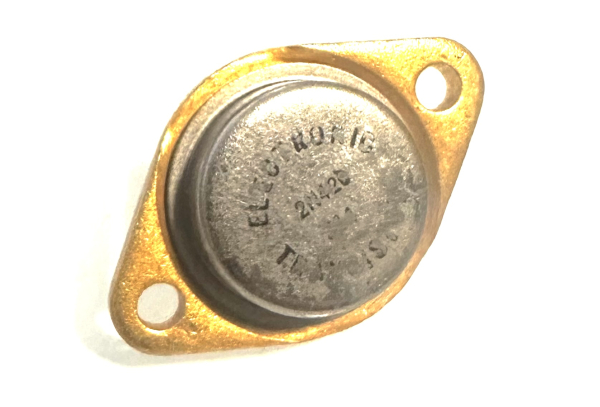

2N420 PNP 65V 5A Germanium Transistor 25W

2N420 PNP Germanium Transistor

• Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 25 W
     Maximum Collector-Base Voltage |Vcb|: 65 V
     Maximum Collector-Emitter Voltage |Vce|: 45 V
     Maximum Collector Current |Ic max|: 5 A
     Max. Operating Junction Temperature (Tj): 100 °C
     Transition Frequency (ft): 0.2 MHz
     Forward Current Transfer Ratio (hFE), MIN: 40
     Package: TO3
• Box 4
