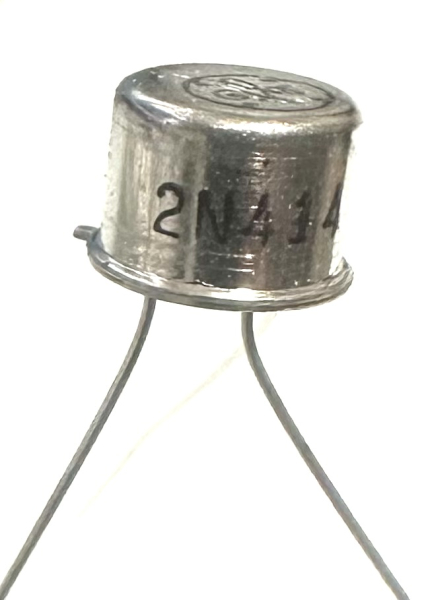

2N414 30V 0.2A PNP Ge .2W Transistor

2N414 PNP Transistor

• PNP Germanium
• Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 0.2 W
     Maximum Collector-Base Voltage |Vcb|: 30 V
     Maximum Collector-Emitter Voltage |Vce|: 15 V
     Maximum Emitter-Base Voltage |Veb|: 20 V
     Maximum Collector Current |Ic max|: 0.2 A
     Max. Operating Junction Temperature (Tj): 85 °C
     Transition Frequency (ft): 3 MHz
     Collector Capacitance (Cc): 24 pF
     Forward Current Transfer Ratio (hFE), MIN: 60

• TO-18 case
• Box 4
