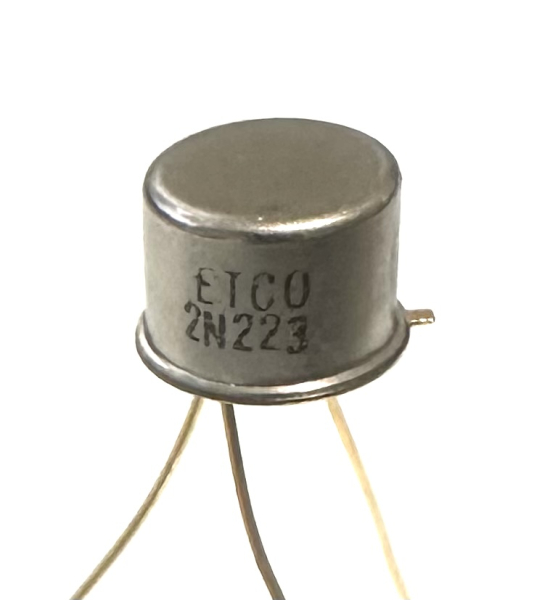

2N223 20V 0.15A PNP Ge .25W Transistor

2N223 Transistor

• PNP Germanium
•    Material of Transistor: Ge
     Polarity: PNP
     Maximum Collector Power Dissipation (Pc): 0.25 W
     Maximum Collector-Base Voltage |Vcb|: 20 V
     Maximum Collector-Emitter Voltage |Vce|: 18 V
     Maximum Collector Current |Ic max|: 0.15 A
     Max. Operating Junction Temperature (Tj): 65 °C
     Transition Frequency (ft): 0.2 MHz
     Collector Capacitance (Cc): 180 pF
     Forward Current Transfer Ratio (hFE), MIN: 40

• TO-18 case
• Box 4
