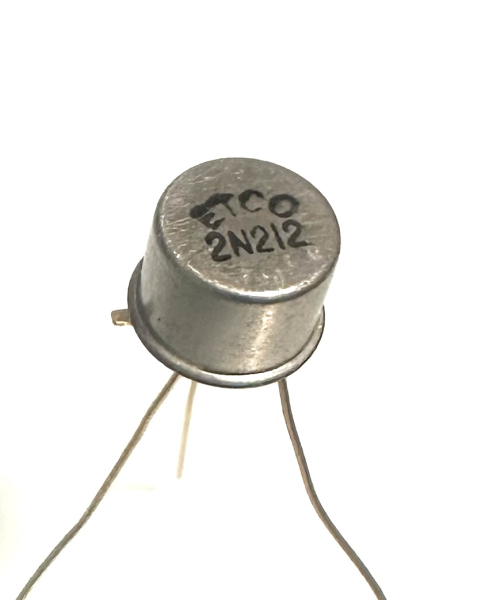

2N212 NPN High Gain Mixer Converter

2N212 NPN Transistor

Material of Transistor: Ge

   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.15 W
   Maximum Collector-Base Voltage |Vcb|: 18 V
   Maximum Collector-Emitter Voltage |Vce|: 18 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 75 °C
   Transition Frequency (ft): 4 MHz
   Collector Capacitance (Cc): 20 pF
   Forward Current Transfer Ratio (hFE), MIN: 20
