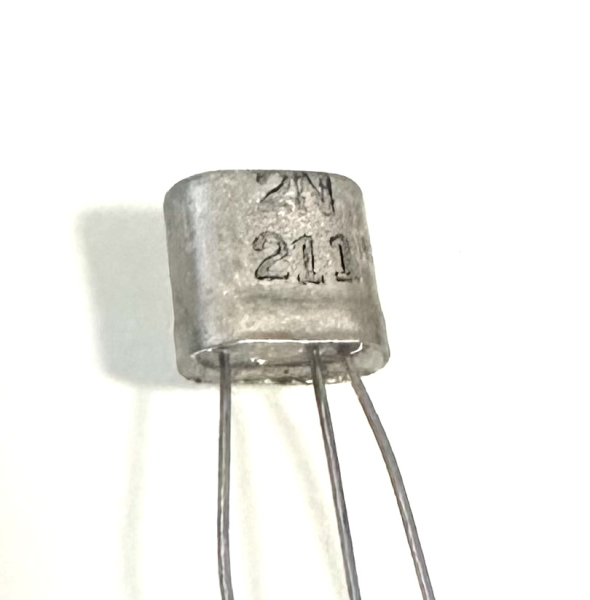

2N211 NPN 10 Volt Oscillator Transistor

2N211 NPN Transistor

• Material of Transistor: Ge
     Polarity: NPN
     Maximum Collector Power Dissipation (Pc): 0.05 W
     Maximum Collector-Base Voltage |Vcb|: 10 V
     Maximum Collector-Emitter Voltage |Vce|: 10 V
     Maximum Collector Current |Ic max|: 0.05 A
     Max. Operating Junction Temperature (Tj): 75 °C
     Transition Frequency (ft): 1.2 MHz
     Collector Capacitance (Cc): 20 pF
     Forward Current Transfer Ratio (hFE), MIN: 10
• box 4
